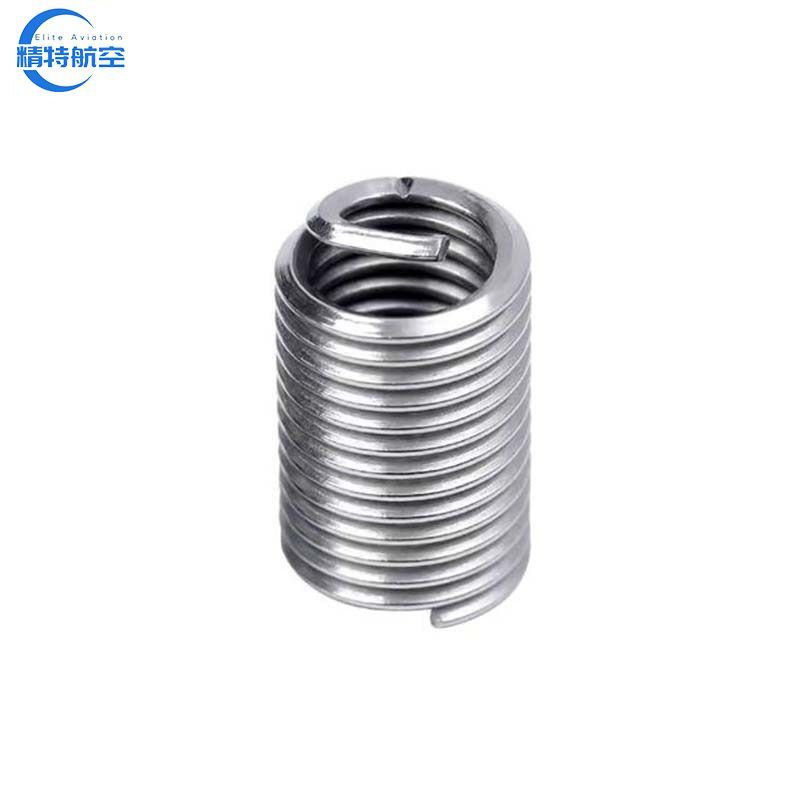

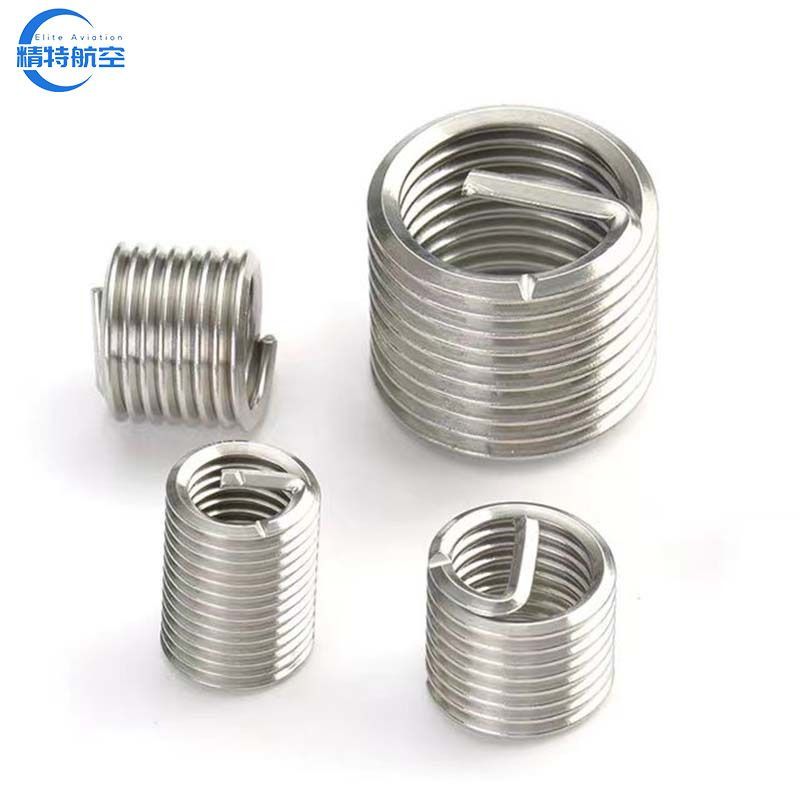

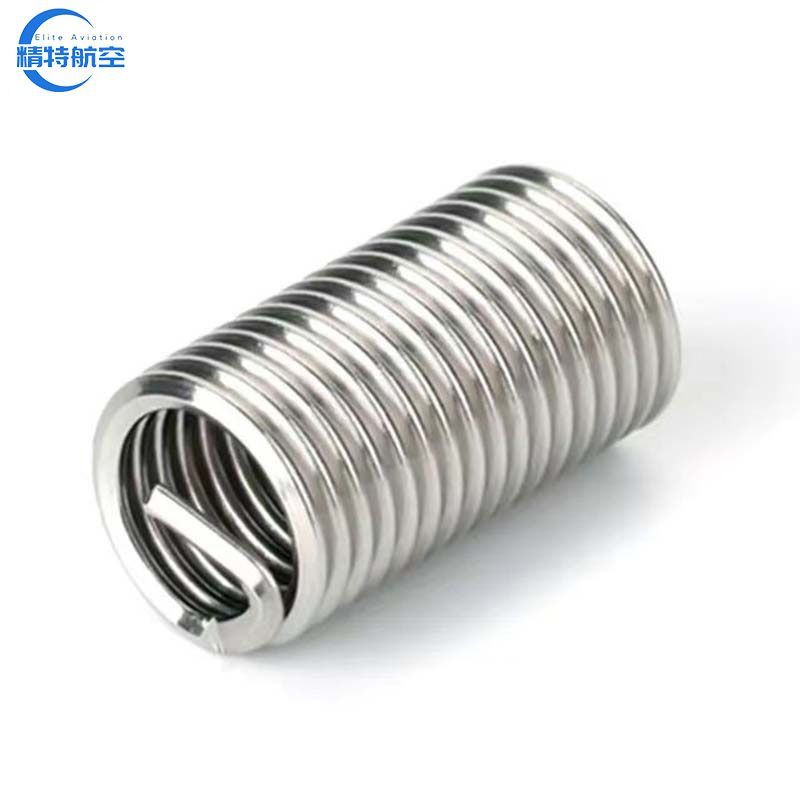

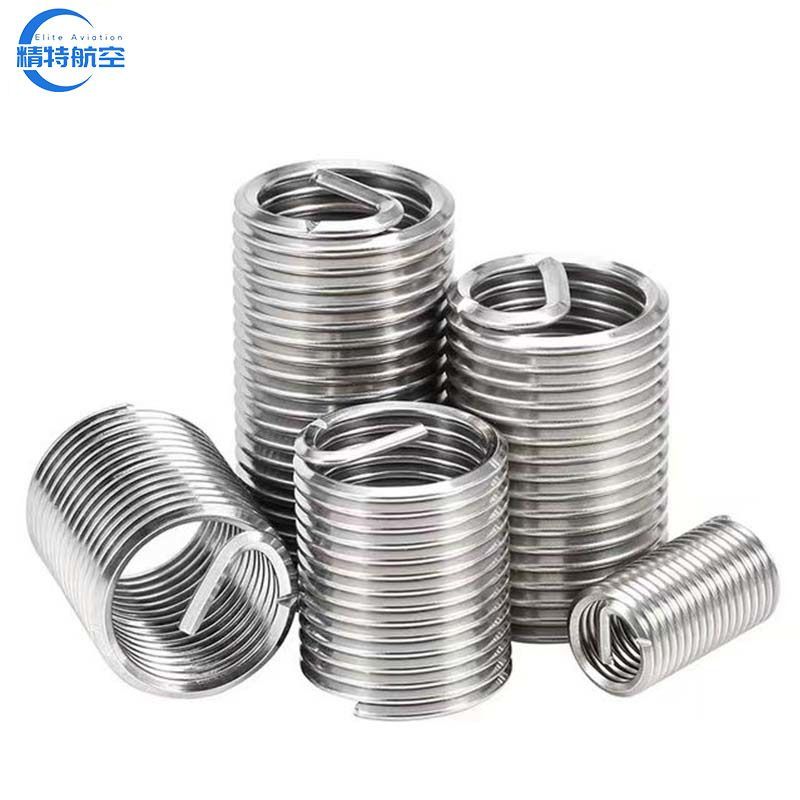

Stainles Steel 304/316L Screw Threaded Inserts Helical Wire Screw Fasteners are are coiled fastenings that are typically used to strengthen threads and protect tapped holes against failure. They can be used to strengthen threads, giving applications a longer life.
Metric series steel wire thread insert type, size and installation parameter table
Diameter
(d) | Pitch
(P) | Nominal Installation Lenth | Number of Turns(W) | Free Outer
(Dz) | Drill Diameter
(do) | Hole Depth
(L3) | Actual Lenth
(L2) |
| ×d | L1 |
| 2 | 0.4 | 1d | 2.0 | 2.9 | 2.60~2.80 | 2.1 | 3.6 | 1.6 |
| 1.5d | 3.0 | 4.9 | 4.6 | 2.6 |
| 2d | 4.0 | 6.9 | 5.6 | 3.6 |
| 2.5d | 5.0 | 8.9 | 6.6 | 4.6 |
| 3d | 6.0 | 10.9 | 7.6 | 5.6 |
| 2.5 | 0.45 | 1d | 2.5 | 3.5 | 3.30~3.50 | 2.6 | 4.3 | 2.1 |
| 1.5d | 3.75 | 5.9 | 5.6 | 3.3 |
| 2d | 5.0 | 8.1 | 6.8 | 4.6 |
| 2.5d | 6.25 | 10.5 | 8.1 | 5.8 |
| 3d | 7.5 | 12.9 | 9.3 | 7.0 |
| 3 | 0.5 | 1d | 3.0 | 3.9 | 3.80~4.00 | 3.1 | 5.0 | 2.5 |
| 1.5d | 4.5 | 6.3 | 6.5 | 4.0 |
| 2d | 6.0 | 8.7 | 8.0 | 5.5 |
| 2.5d | 7.5 | 11.1 | 9.5 | 7.0 |
| 3d | 9.0 | 13.5 | 11.0 | 8.5 |
| 3.5 | 0.6 | 1d | 3.5 | 3.7 | 4.42~4.60 | 3.7 | 5.9 | 2.9 |
| 1.5d | 5.25 | 6.3 | 7.65 | 4.75 |
| 2d | 7.0 | 8.7 | 9.4 | 6.4 |
| 2.5d | 8.75 | 11.2 | 11.15 | 8.15 |
| 3d | 10.5 | 13.3 | 12.9 | 9.9 |
| 4 | 0.7 | 1d | 4.0 | 3.7 | 5.05~5.25 | 4.2 | 6.8 | 3.3 |
| 1.5d | 6.0 | 6.1 | 8.8 | 5.3 |
| 2d | 8.0 | 8.4 | 10.8 | 7.3 |
| 2.5d | 10.0 | 10.9 | 12.8 | 9.3 |
| 3d | 12.0 | 13.2 | 14.8 | 11.3 |
| 5 | 0.8 | 1d | 5.0 | 4.3 | 6.35~6.60 | 5.2 | 8.2 | 4.2 |
| 1.5d | 7.5 | 6.9 | 10.7 | 6.7 |
| 2d | 10.0 | 9.7 | 13.2 | 9.2 |
| 2.5d | 12.5 | 12.3 | 15.7 | 11.7 |
| 3d | 15.0 | 14.8 | 18.2 | 14.2 |
| 6 | 1 | 1d | 6.0 | 4.2 | 7.60~7.85 | 6.3 | 10.0 | 5.0 |
| 1.5d | 9.0 | 6.9 | 13.0 | 8.0 |
| 2d | 12.0 | 9.6 | 16.0 | 11.0 |
| 2.5d | 15.0 | 12.3 | 19.0 | 14.0 |
| 3d | 18.0 | 14.6 | 22.0 | 17.0 |
| 7 | 1 | 1d | 7.0 | 5.3 | 8.65~8.90 | 7.3 | 11.0 | 6.0 |
| 1.5d | 10.5 | 8.2 | 14.5 | 9.5 |
| 2d | 14.0 | 11.1 | 18.0 | 13.0 |
| 2.5d | 17.5 | 14.3 | 21.5 | 16.5 |
| 3d | 21.0 | 17.4 | 25.5 | 20.5 |
| 8 | 1.25 | 1d | 8.0 | 4.7 | 9.85~10.10 | 8.3 | 13.0 | 6.8 |
| 1.5d | 12.0 | 7.4 | 17.0 | 10.8 |
| 2d | 16.0 | 10.6 | 21.0 | 14.8 |
| 2.5d | 20.0 | 13.5 | 25.0 | 18.8 |
| 3d | 24.0 | 16.4 | 29.0 | 22.8 |
| 8 | 1 | 1d | 8.0 | 6.1 | 9.85~10.10 | 8.3 | 12.0 | 7.0 |
| 1.5d | 12.0 | 9.5 | 16.0 | 11.0 |
| 2d | 16.0 | 12.9 | 20.0 | 15.0 |
| 2.5d | 20.0 | 16.5 | 24.0 | 19.0 |
| 3d | 24 | 19.9 | 28.0 | 23.0 |
| 9 | 1.25 | 1d | 9.0 | 5.3 | 10.85~11.1 | 9.4 | 14.0 | 7.75 |
| 1.5d | 13.5 | 8.6 | 18.5 | 12.25 |
| 2d | 18.0 | 11.9 | 23.0 | 16.75 |
| 2.5d | 22.5 | 15.3 | 27.5 | 21.25 |
| 3d | 27.0 | 18.1 | 32.0 | 25.75 |
| 10 | 1.5 | 1d | 10.0 | 5.0 | 12.10~12.50 | 10.4 | 16.0 | 8.5 |
| 1.5d | 15.0 | 8.1 | 21.0 | 13.5 |
| 2d | 20.0 | 11.2 | 26.0 | 18.5 |
| 2.5d | 25.0 | 14.2 | 31.0 | 23.5 |
| 3d | 30.0 | 17.2 | 36.0 | 28.5 |
| 10 | 1.25 | 1d | 10.0 | 6.0 | 12.10~12.50 | 10.3 | 15.0 | 8.8 |
| 1.5d | 15.0 | 9.7 | 20.0 | 13.8 |
| 2d | 20.0 | 13.1 | 25.0 | 18.8 |
| 2.5d | 25.0 | 16.9 | 30.0 | 23.75 |
| 3d | 30.0 | 20.1 | 35.0 | 28.75 |
| 10 | 1 | 1d | 10.0 | 7.6 | 12.10~12.50 | 10.3 | 14.0 | 9.0 |
| 1.5d | 15.0 | 12.1 | 19.0 | 14.0 |
| 2d | 20.0 | 16.3 | 24.0 | 19.0 |
| 2.5d | 25 | 20.7 | 29.0 | 24.0 |
| 3d | 30 | 25.0 | 34.0 | 29.0 |
| 11 | 1.5 | 1d | 11.0 | 5.6 | 13.10~13.50 | 11.4 | 17.0 | 9.5 |
| 1.5d | 16.5 | 9.0 | 22.5 | 15.0 |
| 2d | 22.0 | 12.3 | 28.0 | 20.5 |
| 2.5d | 27.5 | 15.7 | 33.5 | 26.0 |
| 3d | 33.0 | 19.1 | 39.0 | 31.5 |
| 12 | 1.75 | 1d | 12.0 | 5.2 | 14.40~14.80 | 12.4 | 19.0 | 10.3 |
| 1.5d | 18.0 | 8.4 | 25.0 | 16.3 |
| 2d | 24.0 | 11.7 | 31.0 | 22.3 |
| 2.5d | 32.0 | 14.7 | 39.0 | 30.3 |
| 3d | 36.0 | 18.0 | 43.0 | 34.3 |
| 12 | 1.5 | 1d | 12.0 | 6.2 | 14.40~14.80 | 12.4 | 18.0 | 10.5 |
| 1.5d | 18.0 | 9.8 | 24.0 | 16.5 |
| 2d | 24.0 | 13.5 | 30.0 | 22.5 |
| 2.5d | 32.0 | 17.1 | 38.0 | 30.5 |
| 3d | 36.0 | 20.8 | 42.0 | 34.5 |
| 12 | 1.25 | 1d | 12.0 | 7.4 | 14.40~14.80 | 12.3 | 17.0 | 10.8 |
| 1.5d | 18.0 | 11.6 | 23.0 | 16.8 |
| 2d | 24.0 | 15.9 | 29.0 | 22.8 |
| 2.5d | 30.0 | 20.0 | 35.0 | 28.75 |
| 3d | 36.0 | 24.3 | 41.0 | 34.75 |
| 12 | 1 | 1d | 12.0 | 9.3 | 14.40~14.80 | 12.3 | 16.0 | 11.0 |
| 1.5d | 18.0 | 14.5 | 22.0 | 17.0 |
| 2d | 24.0 | 19.5 | 28.0 | 23.0 |
| 2.5d | 30.0 | 24.8 | 34.0 | 29.0 |
| 3d | 36.0 | 30.0 | 40.0 | 35.0 |
| 13 | 1.25 | 1d | 13.0 | 8.2 | 15.80~16.30 | 13.3 | 18.0 | 11.8 |
| 1.5d | 19.5 | 12.7 | 24.5 | 18.3 |
| 2d | 26.0 | 17.2 | 31.0 | 24.8 |
| 14 | 2 | 1d | 14.0 | 5.6 | 16.80~17.20 | 14.5 | 22.0 | 12.0 |
| 1.5d | 21.0 | 8.8 | 29.0 | 19.0 |
| 2d | 28.0 | 12.0 | 36.0 | 26.0 |
| 2.5d | 35.0 | 15.2 | 43.0 | 33.0 |
| 14 | 1.5 | 1d | 14.0 | 7.4 | 16.80~17.20 | 14.4 | 20.0 | 12.5 |
| 1.5d | 21.0 | 11.6 | 27.0 | 19.5 |
| 2d | 28.0 | 15.7 | 34.0 | 26.5 |
| 2.5d | 35.0 | 19.9 | 41.0 | 33.5 |
| 14 | 1.25 | Spark Plug Thread | 8.4 | 4.6 | 16.80~17.20 | 14.3 | 13.4 | 7.15 |
| 12.4 | 7.4 | 17.4 | 11.15 |
| 14.4 | 9.1 | 19.4 | 13.15 |
| 16.4 | 10.2 | 21.4 | 15.15 |
| 14 | 1 | 1d | 14.0 | 11.2 | 16.80~17.20 | 14.3 | 18.0 | 13.0 |
| 1.5d | 21.0 | 17.2 | 25.0 | 20.0 |
| 2d | 28.0 | 23.2 | 32.0 | 27.0 |
| 2.5d | 35.0 | 29.2 | 39.0 | 34.0 |
| 16 | 2 | 1d | 16.0 | 6.5 | 19.00~19.40 | 16.5 | 24.0 | 14.0 |
| 1.5d | 24.0 | 10.1 | 32.0 | 22.0 |
| 2d | 32.0 | 13.8 | 40.0 | 30.0 |
| 2.5d | 40.0 | 17.5 | 48.0 | 38.0 |
| 16 | 1.5 | 0.75d | 12.0 | 6.1 | 19.00~19.40 | 16.4 | 18.0 | 10.5 |
| 1d | 16.0 | 8.7 | 22.0 | 14.5 |
| 1.5d | 24.0 | 13.4 | 30.0 | 22.5 |
| 2d | 32.0 | 18.1 | 38.0 | 30.5 |
| 2.5d | 40.0 | 22.9 | 46.0 | 38.5 |
| 18 | 2.5 | 0.75d | 13.5 | 3.8 | 21.50~22.0 | 18.6 | 23.5 | 7.0 |
| 1d | 18.0 | 5.6 | 28.0 | 15.5 |
| 1.5d | 27.0 | 9.0 | 37.0 | 24.5 |
| 2d | 36.0 | 12.3 | 46.0 | 33.5 |
| 18 | 2 | 0.75d | 13.5 | 5.1 | 21.50~22.0 | 18.5 | 21.5 | 11.5 |
| 1d | 18.0 | 7.1 | 26.0 | 16.0 |
| 1.5d | 27.0 | 11.2 | 35.0 | 25.0 |
| 2d | 36.0 | 15.1 | 44.0 | 34.0 |
| 18 | 1.5 | 0.5d | 9.0 | 4.2 | 21.50~22.0 | 18.4 | 15.0 | 7.5 |
| 0.75d | 13.5 | 7.0 | 19.5 | 12.0 |
| 1d | 18.0 | 9.5 | 24.0 | 16.5 |
| 1.5d | 27.0 | 14.9 | 33.0 | 25.5 |
| 2d | 36.0 | 20.2 | 42.0 | 34.5 |
| 20 | 2.5 | 0.5d | 10.0 | 2.7 | 23.70~24.20 | 20.6 | 20.0 | 7.5 |
| 0.75d | 15.0 | 4.5 | 25.0 | 12.5 |
| 1d | 20.0 | 6.3 | 30.0 | 17.5 |
| 1.5d | 30.0 | 10.0 | 40.0 | 27.5 |
| 2d | 40.0 | 13.7 | 50.0 | 37.5 |
| 20 | 2 | 0.5d | 10.0 | 3.5 | 23.70~24.20 | 20.5 | 18.0 | 8.0 |
| 0.75d | 15.0 | 5.8 | 23.0 | 13.0 |
| 1d | 20.0 | 8.0 | 28.0 | 18.0 |
| 1.5d | 30.0 | 12.5 | 38.0 | 28.0 |
| 2d | 40.0 | 16.8 | 48.0 | 38.0 |
| 20 | 1.5 | 0.5d | 10.0 | 4.9 | 23.70~24.20 | 20.4 | 16.0 | 8.5 |
| 0.75d | 15.0 | 7.9 | 21.0 | 13.5 |
| 1d | 20.0 | 10.7 | 26.0 | 18.5 |
| 1.5d | 30.0 | 16.7 | 36.0 | 28.5 |
| 2d | 40.0 | 22.4 | 46.0 | 38.5 |
| Material | Steel Grade | Usage Temperature | Collapse strength at room temperature | Surface Treatment |
| Stainless steel | 0Cr18Ni9 | 425ºC in short time
315ºC in long time | >1400Mpa | Natural surface
Cadmium plating
Silvering plating |
| 1Cr18Ni9 |
| 1Cr18Ni9Ti |
| Copper alloy | QSn6.5-4 | 300ºC in short time
250ºC in long time | >1000Mpa | Natural surface
Cadmium plating |
| High-temperature alloy | Inconelx750 | 750ºC in short time
550ºC in long time | >1400Mpa | Natural surface
Silvering plating |
Wire thread inserts are inserts developed to protect non-ferrous metal threaded holes and are suitable for threaded connections. Screw and tighten it into the threaded hole of one of the connected parts to form a standard internal thread, and the bolt (or screw) is then screwed into it. The commonly used material for wire thread inserts is stainless steel 304. The installation steps of wire thread inserts are simple and clear, including drilling, tapping, installation and tail removal.
Applications:
Automotive, Rail carriages, Metal construction, Aerospace industry, Agricultural machinery, Construction machinery, Electronic devices, Mechanical engineering, Wind power Solar, etc. Package and Delivery Time
Package: Usually finished products will be put into plastic bags and outer with carton cases.
We will also reinforce the cases onto tthe pallet to avoid damage during transportation.
Delivery time: Stocked goods can be delivered out the same day we received the order.
Usually the delivery time is within 3-7 working days.
